Description

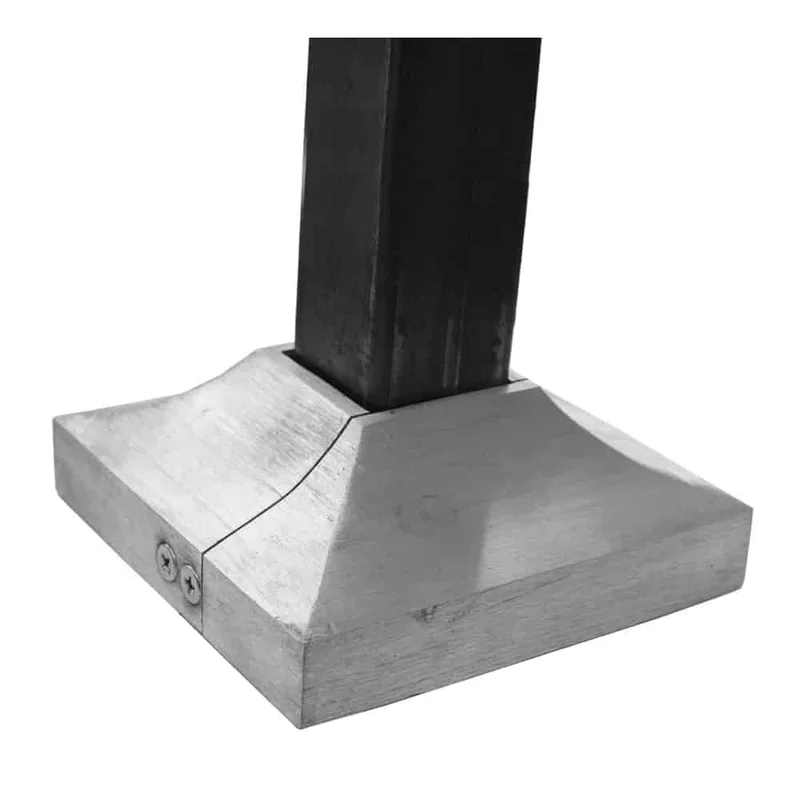

Two Piece Split Shoe Dimension Details Versions for fitting square base plates up to 4:
Fits square posts and newels measuring 1, 1-1/4, 1-1/2, and 2
Overall dimensions: 5-1/8 square
Height: 2
For fitting over square base plates up to 5-1/4 (DJA345A-2L):
Fits 2 square posts and newels
Overall dimensions: 6-3/8 square
Height: 2
Material Type and Finish
Cast aluminum
Set screws are stainless steel to limit corrosion for general exterior and interior usage
Ready to paint to match your railing color, or can be powder-coated
Cover Plate Installation
Using a phillips screwdriver, remove the two set screws on each side (four total).
Position one half of the cover around the post and base plate, and verify sizing.
Slide the other half of the cover around the post and base plate. Align the set screw holes.
Screw in each set screw fully. Do not overtighten.
CAD Models
2D and 3D CAD models are available upon request. Please contact us so we can provide the correct file version for your system and workflow.
