Description

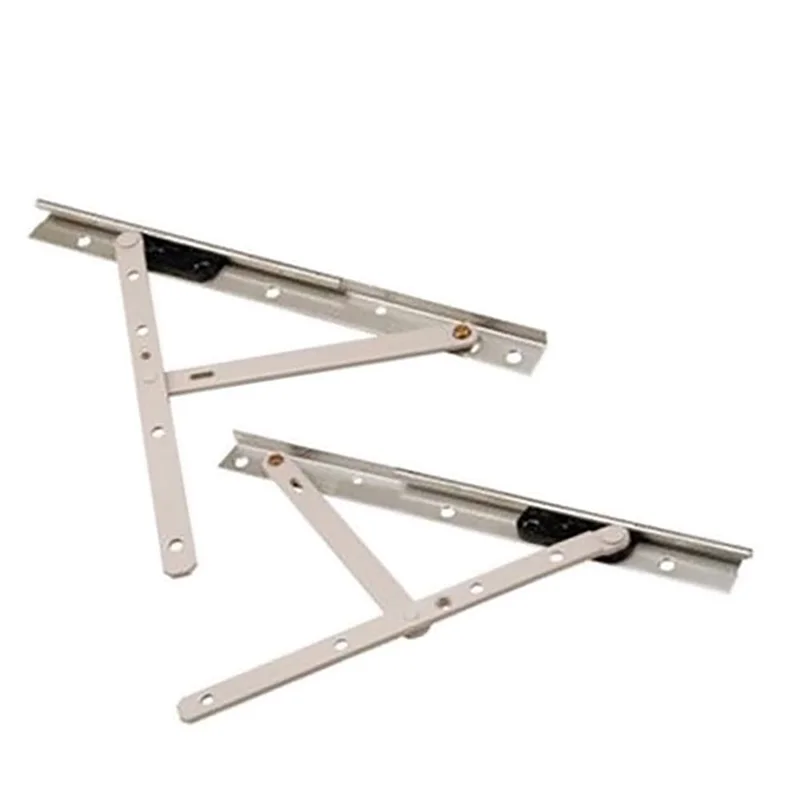

Truth® 14.75 Concealed Casement Hinge Assembly with 10″ Stainless Steel Track
This Truth® 14.75.00.270 / .271 concealed casement hinge assembly kit provides a durable and corrosion-resistant solution for standard casement windows. It includes four (4) Amesbury Truth® components to assemble a pair of left and right-handed upper and lower hinge assemblies, suitable for either left or right hand windows. This kit is designed for homeowners, window specialists, and contractors needing a direct replacement or repair part for compatible casement window systems.
The track is made of stainless steel with a brass stud for lasting performance, and the hinge arms utilize the E-Gard® finish—an advanced multi-stage coating that boosts corrosion resistance. This finish offers protection against harsh cleaning agents and environmental pollutants, performing approximately three times better than standard zinc plating. Both tracks and arms accommodate common wear points, ensuring reliable operation and longevity in residential and commercial applications.
Each kit is designed to fit left or right-hand windows and is sold in pairs, with one upper and one lower hinge provided. Screws are not included; recommended for installation are #7 x 3/4″ (19mm) stainless steel Phillips flat head sheet metal screws, but actual screw size may vary by your window material and application. Please note, adjustable and all-stainless versions of this hinge (14.05, 14.75 E-Gard®, and 14.80) share sizing but differ in material. For easy identification, Truth® part numbers such as 30744, 31133, 31230, 40942, 40941, 6D103, 331778, and 31133C may appear on the hinge arm itself.
Technical Information
- Track Length: 10″ (254.0mm)
- Track Width: 7/16″ (11.1mm)
- Window Hinge Opening: 4-29/32″ (124.2mm)
- Arm Lengths: Long link 7-11/16″ (195.3mm), Short link 5-1/2″ (139.7mm)
- Stack Height: 7/16″ (11.1mm)
- Track Material: Stainless Steel with Brass Stud
- Arm Material: E-Gard® Corrosion-Resistant Finish
- Handed: Pair includes one left- and one right-handed hinge
- Sold In Pairs: Contains 1 upper and 1 lower hinge assembly
Notes
- Compatibility: Fits most standard casement windows as a replacement for original Truth® hinges
- Part Numbers: May be marked with 30744, 31133, 31230, 40942, 40941, 6D103, 331778, or 31133C on the hinge arm
- Material variants: 14.05 Adjustable, 14.75 E-Gard®, and 14.80 Stainless Steel are identical in size, differing only in finish and material
- Screws are not included – required screw type and size depend on your specific window profile and material
Ensure you measure your existing hardware carefully to confirm proper fit before ordering.
Accurate measuring helps avoid returns and guarantees compatibility with your window system.
