T-45 Pivot Lock Balance Shoe, 5/8″ Spiral, White Light Blue

Description

Pivot Lock Balance Shoe, Tilt – T-45, White with Light Blue Cam

This
pivot lock balance shoe is designed for use with
5/8″ (15.9mm) spiral tilt balance systems found in many tilt-in vinyl or aluminum windows. The core function of this part is to securely lock and guide the sash inside the frame, allowing for smooth tilting and up-and-down operation of double-hung windows. The shoe features a
white housing with a distinctive
light blue cam for easy identification during installation or replacement.

This replacement part is ideal for fixing windows that will not stay up, are difficult to tilt, or where the original shoe is damaged or worn. Its specific color combination and dimensions help ensure compatibility with several popular window types using spiral tilt balance rods.

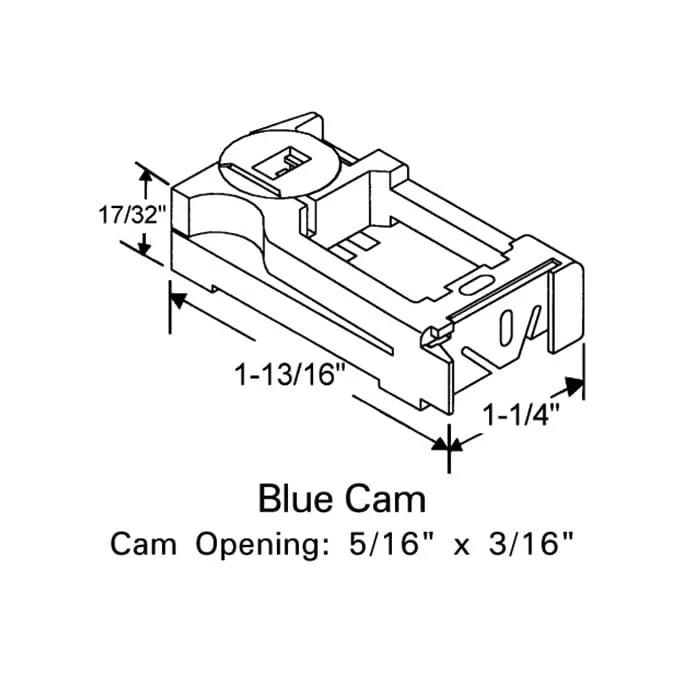

Technical Information

• For Balance Type: 5/8″ (15.9mm) spiral tilt balance
• Color: White body / Light blue cam
• Length: 1-13/16″ (46.0mm)
• Width: 1-1/4″ (31.8mm)
• Thickness: 17/32″ (13.5mm)

Notes

• Step-by-step guide: How to Adjust a Spiral Balance Rod
• Video: How to Replace a Spiral Balance
• Priced and sold individually.

Ensure to carefully measure your existing pivot lock shoe and balance rod before ordering to ensure proper fit and function.
Always confirm hardware sizes to reduce the chance of ordering the wrong part.
