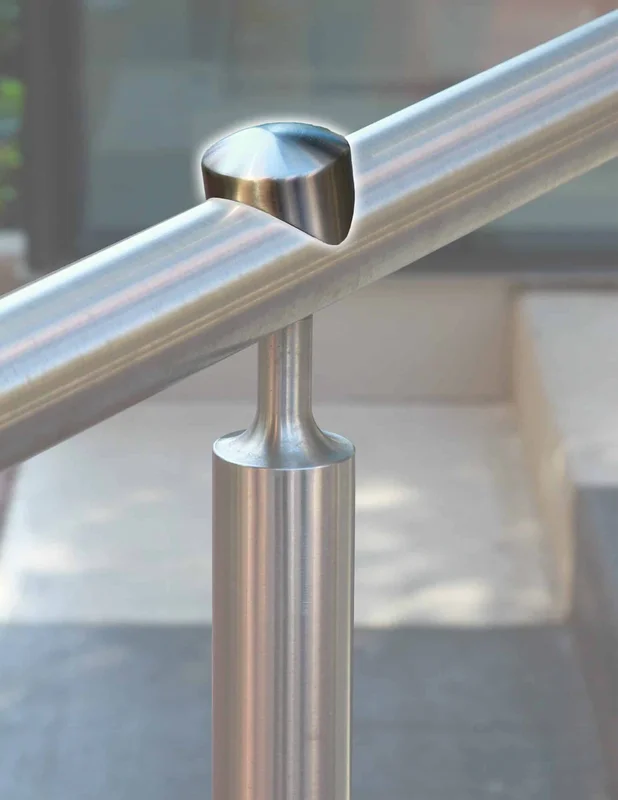

Stainless steel handrail protector guard

Description

Dimension Details

Fits over common stainless steel handrail sizes:

1-1/2 OD (1-1/2 tube)

1.66 OD (1-1/4 pipe)

1-7/8 OD (1-1/2 pipe)

Protrudes 1/2 above handrail surface

Threaded 1/4-20 x 3/8 blind hole

Log in to download CAD drawing specification with full dimensions (link will appear on this product page when logged in).

Material Type and Finish

Stainless steel type 316

Satin finish

Handrail Protector Recommended Installation

The handrail damage deterrent guard can be easily installed during fabrication or after installation. Using the blind hole underside mounting, you can maintain the beautifully modern and clean aesthetic of your stainless steel handrail while preventing tampering.

Purchase tamper proof 1/4-20 x 3/8 screw with socket head

Determine guard placement on handrail

Using a 9/32 drill bit, drill a clearance hole through the top and bottom of handrail, perpendicular to the handrail surface

Enlarge bottom hole larger than the screw head

Using a socket screwdriver, insert the screw into the handrail and secure the protector guard

Screw in fully. Do not overtighten.

(Optional) Fill in the bottom hole with weld filler

Note: Mounting screw hardware is not provided.
