Description

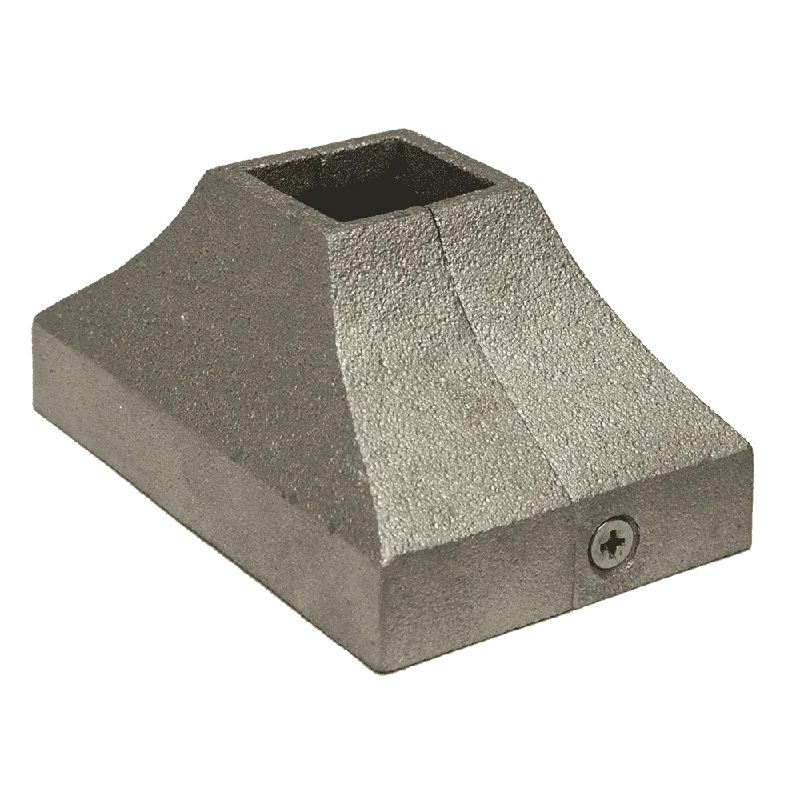

Dimension Details for Rectangular Two Piece Split Shoe for 1 Square Bar
Fits 1 square balusters and newels
Covers common rectangular 3 x 2 base plates
Overall length: 4-1/4
Overall width: 2-5/8
Overall height: 2
Material Type and Finish
Cast aluminum
Set screws are stainless steel to limit corrosion for general exterior and interior usage
Ready to paint to match your railing color, or can be powder-coated
Base Shoe Installation
Using a phillips screwdriver, remove the set screw on each side (two total).
Position one half of the cover shoe around the post, and verify sizing. Refer to graphic in product gallery.
Slide the other half of the shoe around the post. Align the set screw holes.
Screw in each set screw fully. Do not overtighten.
We recommend pairing this design with the matching corner split shoe.
Note: This item is designed to cover rectangular base plates. See Item DJA345A for a square base plate cover split shoe option.
CAD Models and Drawings
For a technical drawing, log in using your D.J.A. account to view the PDF download link on this product page. 2D and 3D CAD models are available upon request. Please contact us so we can provide the correct file version for your system and workflow.
