P2000 Passive Gearbox 60mm Backset 92mm PZ American Cylinder

Description

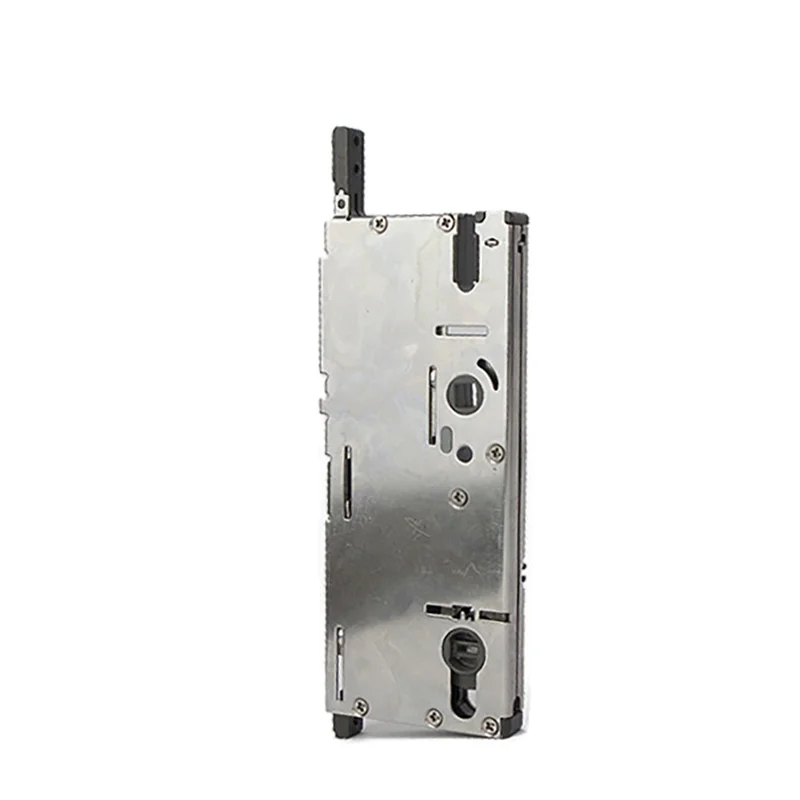

P2000® Passive Gearbox Only – 60mm Backset, 92mm Handle PZ, American Cylinder

The P2000® Passive Gearbox Only is designed for use with American cylinder lock systems featuring a 2-3/8″ (60mm) backset and a 3-5/8″ (92mm) handle PZ. This component is intended for multipoint door locking setups where only the gearbox needs to be replaced, without the full hardware assembly. It is suitable for doors that use American profile cylinders and require a precise fit and reliable operation from their multipoint lock system.

This item is the gearbox only, meaning it does not include extensions, faceplates, or other multipoint hardware components. If your existing multipoint lock system has a damaged or worn gearbox but is otherwise functional, this replacement part restores locking and handle operation while allowing you to reuse existing compatible extensions and hardware. Designed for longevity and ease of installation in applicable doors.

Technical Information

• Backset: 2-3/8″ (60mm)
• Handle PZ (center-to-center): 3-5/8″ (92mm)
• Cylinder Type: American

Notes

• The screws that attach the gearbox to extensions have a T-20 Star (Torx) drive head.
• These T-20 Torx screws require 12-13 pounds of torque for proper installation.
• Vendor: Amesbury Truth Hardware
• Product does not include extensions, faceplates, or cylinder; only the passive gearbox as pictured.
• For multipoint door hardware systems using the P2000® series.

Before ordering, measure your existing multipoint hardware carefully to confirm compatibility with your door’s specifications and to ensure correct fit.
