Description

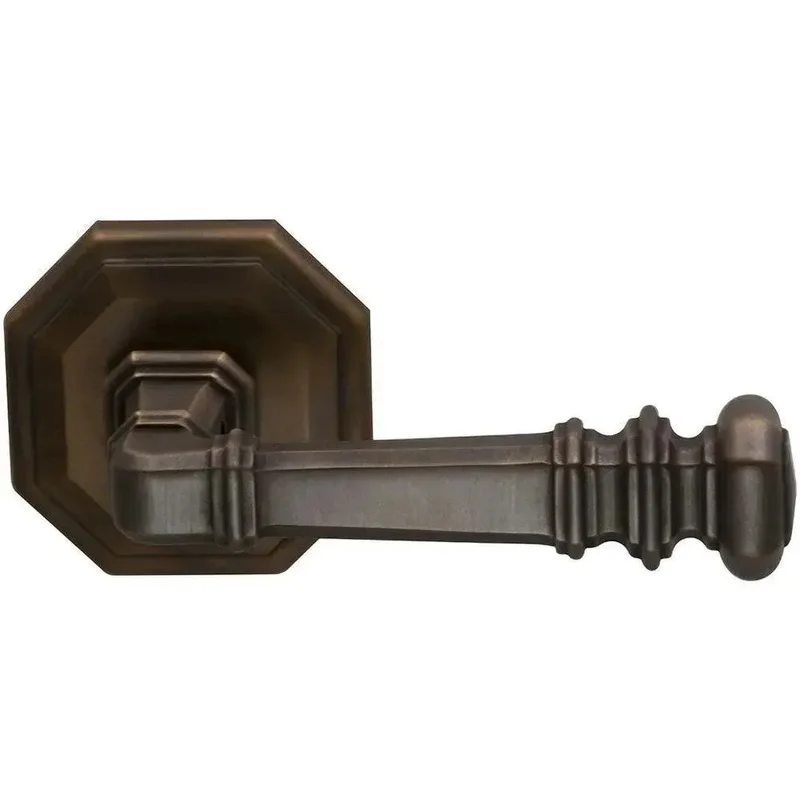

Traditional aesthetic, the 101 lever with Octagonal rosette provides a timeless appeal with its elegant looks and comfortable feel.
Passage Features
- Passage Function: Latch operates by knob or lever from either side of door.
- Each set consists of solid brass knobs or levers, surface mounted roses, latch, strike, dust box, faceplate, spindle, all necessary mounting screws, installation template, and instructions.
- Concealed screw roses are self-aligning, spring-assisted. Fits a 2 1/8″ pre-bored door
- 28 degree lever rotation to retract latch
- All lever latchsets meet ADA accessibility requirements
- Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
- Reversible
- Projection: 2 1/2″
- Length: 4 5/8″
- Height: 2 5/8″
Privacy Features
- Privacy Function: Locks by privacy bolt with turnpiece on inside; emergency release on outside privacy rose. For sets with 1 3⁄4″ and 2 3⁄16″ dia. roses, a separate mortise privacy bolt must be ordered.
- Each set consists of solid brass knobs or levers, surface mounted roses, latch, strike, dust box, faceplate, spindle, all necessary mounting screws, installation template, and instructions.
- Concealed screw roses are self-aligning, spring-assisted. Fits a 2 1/8″ pre-bored door
- 28 degree lever rotation to retract latch
- All lever latchsets meet ADA accessibility requirements
- Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
- Reversible
- Projection: 2 1/2″
- Length: 4 5/8″
- Height: 2 5/8″
Half Dummy Features
- Single Dummy: Trim on one side of door only. Surface mounted. Knob or lever with rose. For dummy pair, order two single dummies.
- Note: The finishes US3A and US5A are unlacquered and will change over time. Items received may not match sample displays.
- Projection: 2 1/2″
- Length: 4 5/8″
- Height: 2 5/8″
