Mortise Lock For Sliding Patio Doors 45 Degrees Slot For For Wood And Vinyl Sliding Patio Doors

Description

Mortise Lock For Sliding Patio Doors 45 Degrees Slot For For Wood And Vinyl Sliding Patio Doors

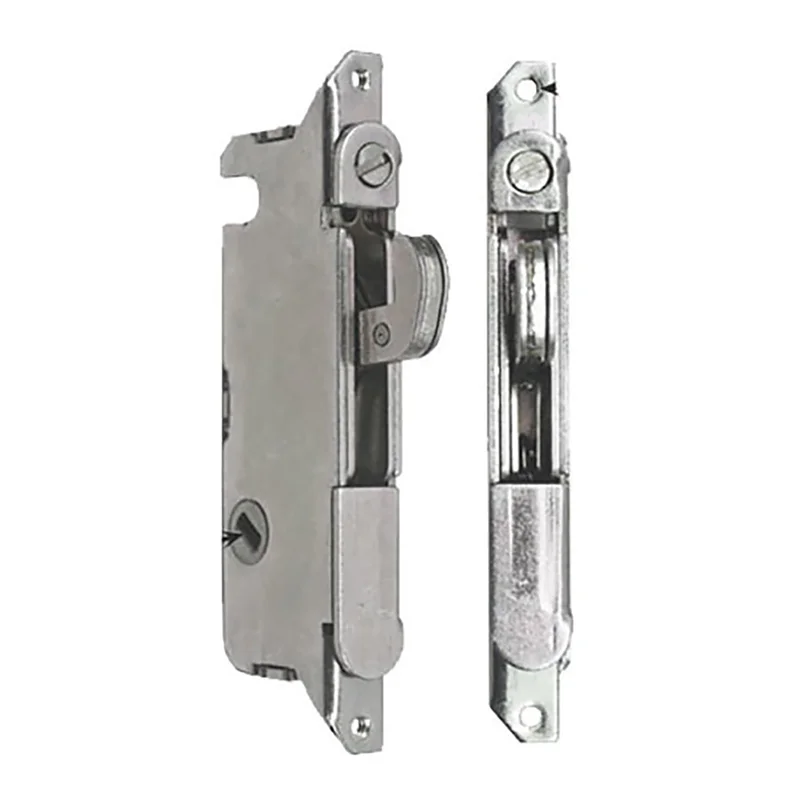

Common Mortise Lock for 45 deg Slot Wood & Vinyl Patio Doors, W & F Style

W&F Style mortise lock – round end with 45 degree slot when locked.

Available Finishes: Zinc Dichromate and Stainless Steel

7/8” Backset
Installed with 6-32 machine screw
Internal Latch for primarily Wood and Vinyl Glass Sliding Patio Doors

Note: Metal Doors usually use the 15143 vertical keyway Latch

Hole Center: 3-11/16-inch
Keyway: 45 Deg.
