Left Hand Truth EntryGard Casement Operator 4-7/16″ Offset Down Link 20810/20544

Description

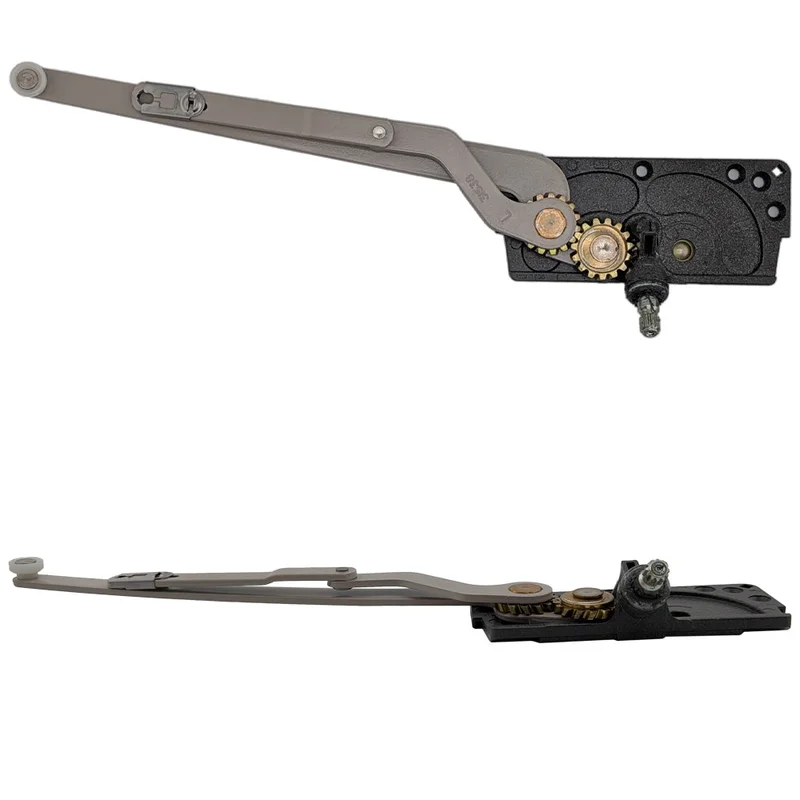

Truth EntryGard® Casement Operator, 4-7/16″ Offset Down Link

The Truth EntryGard® Casement Crank Operator is designed for casement windows utilizing a sill-mounted mechanism. This operator features a dual-arm design with a straight main arm and an offset-down link, providing reliable, smooth window operation for left-handed applications. The unit is finished with a silver spline and is compatible with several popular window models using this specific operator style.

The key identifying feature is its 4-7/16″ (113.1 mm) offset-down link, marked with link numbers 20810 or 20544, which helps ensure fit with windows that require this specific configuration. The main arm measures 10-1/2″ (266.7 mm) from the center of the operator to the edge of the button, and the unit is equipped with a nylon roller (9/16″ [14.3 mm] diameter; 3/16″ [4.8 mm] thick) for smooth movement and long service life. Handing is left-handed, determined when viewed from outside with the hinge on the left.

Typical uses for this operator include replacing worn or non-functional window cranks on casement windows originally equipped with Truth EntryGard® systems, especially where the link offset must be down to match the window’s track configuration. The offset link and accurate arm measurements are essential for compatibility—always confirm these dimensions against your original hardware.

Technical Information

• Main Arm Length: 10-1/2″ (266.7 mm)
• Link Length: 4-7/16″ (113.1 mm), offset down
• Link Markings: 20810 or 20544
• Roller Material: Nylon
• Roller Size: 9/16″ (14.3 mm) diameter, 3/16″ (4.8 mm) thick
• Handing: Left Handed
• Sill Mounted: Yes
• Arm Type: Dual Arm, Split Arm with offset link
• Manufacturer: Amesbury Truth Hardware

Notes

• Handing is determined by the side the hinge is on when viewed from outside.
• Link is offset down; verify your window’s track configuration for compatibility.
• Silver spline finish.

This item is typically sold individually. To avoid returns, measure your existing hardware and confirm all details—including arm length, link length, offset direction, and markings—before ordering.
