Description

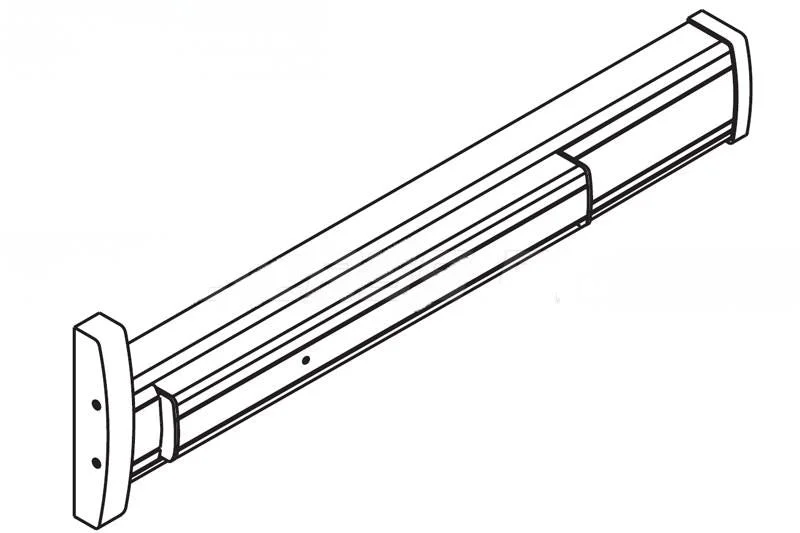

The Kawneer Keyed Rim Exit Device – 42″ Clear Anodizedis designed for commercial aluminum storefront doors, providing dependable exit hardware with the added convenience of keyed exterior access. Finished in a durable clear anodized aluminum finish, this device offers a clean architectural appearance while resisting wear and corrosion in demanding commercial environments such as retail storefronts, offices, schools, and public buildings.
Type: Keyed
Length: 42″
Color: Clear Anodized
Part Number: CH-551
Dimensions:
Center line of touch bar to bottom of door: 40″ (1,016 mm)
Height: 3-3/16″ (81 mm)
Projection: 2-3/4″ (70 mm)
Projection when dogged: 1-13/16″ (46 mm)
This Kawneer 1786 Rim Exit Device features a latching mechanism with keyed operation. A 5/8″ throw latch bolt located in the rim of the housing engages an aluminum jamb or removable mullion-mounted strike. When the touch bar is depressed from the interior, the latch bolt retracts and permits egress from the building.
Designed for single or double door applications, this exit device is suitable for medium and high traffic areas and is UL Listed, meeting commercial safety and performance standards.
