Description
The Kawneer Keyed Rim Exit Device – 42″ Bronze is designed for commercial aluminum storefront doors, providing dependable exit hardware with the added benefit of keyed exterior access. Finished in a durable bronze coating, this device offers a professional architectural appearance while resisting wear and corrosion in demanding commercial environments such as retail storefronts, offices, schools, and public buildings.
Type: Keyed
Length: 42″
Color: Bronze
Part Number: CH-549
Dimensions:
Center line of touch bar to bottom of door: 40″ (1,016 mm)
Height: 3-3/16″ (81 mm)
Projection: 2-3/4″ (70 mm)
Projection when dogged: 1-13/16″ (46 mm)

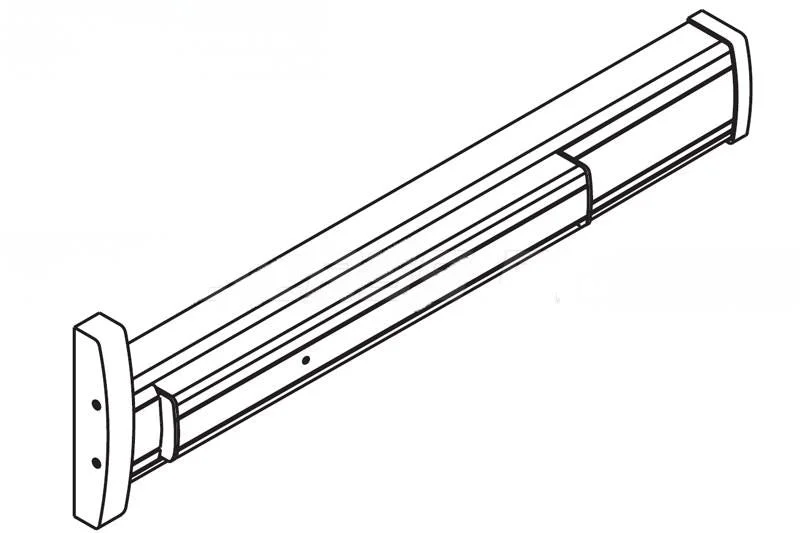

This Kawneer 1786 Rim Exit Device features a latching mechanism with keyed operation. A 5/8″ throw latch bolt located in the rim of the housing engages an aluminum jamb or removable mullion-mounted strike. When the touch bar is depressed from the interior, the latch bolt retracts and permits egress from the building.
Designed for single or double door applications, this exit device is suitable for medium and high traffic areas and is UL Listed, meeting commercial safety and performance standards.
