Heavy Duty BiFold Gate Hardware Kit

Description

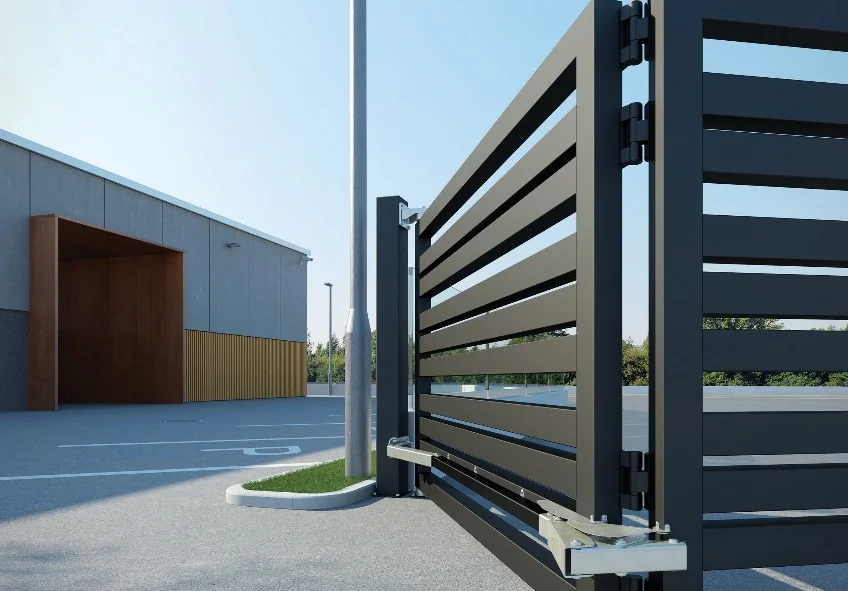

From Milan to New York, to Washington, D.C. and Los Angeles, BiFold gates are providing homeowners with a better driveway security solution. And, it can be automated! This heavy duty kit includes all the hardware you need to add the space-saving folding behavior to a two-leaf gate (up to 26 feet and a whopping 2204 lb. depending on gate dimensions). Note: Gate is NOT included. If you are a homeowner, we recommend working with a local gate fabricator to design and install a gate that meets the systems requirements. Contact our helpful team for recommendations in your area.

Whats Included (Complete Kit, No Separately Sold Hardware Required)

(1) Heavy duty reinforced column joint arm mechanism (VC7101.080)

(1) Heavy duty reinforced leaf joint arm mechanism (VC7102.080)

(4) Heavy duty leaf hinges (VL4500.140.V)

(2) Protective guards (VC7105)

(1) Top post weld-on hinge (VC4114.090)

(1) Bottom support weld-on hinge (VC4202.090)

(1) Zinc-plated channel, 2 x 2 x 1/8 x 118 long, cut at 92 for UPS shipping (VA5402.003.L)

(1) Drilling template

For additional information and videos, click here.

Need to cover a wider space? Add a second kit for a mirrored two-leaf setup and cover up to 52 feet. Have a question about your setup, or installation? Our experienced staff is ready to help, contact us.

Heavy Duty BiFold Gate Hardware Kit Opening and Weight Capacities

Use this table to determine the maximum gate weight (in lbs.) based on the opening (columns) and minimum gate height (rows).
