Giesse Terrace Door Flash Hinge XL clamp hinge C001 for Euro Groove

Description

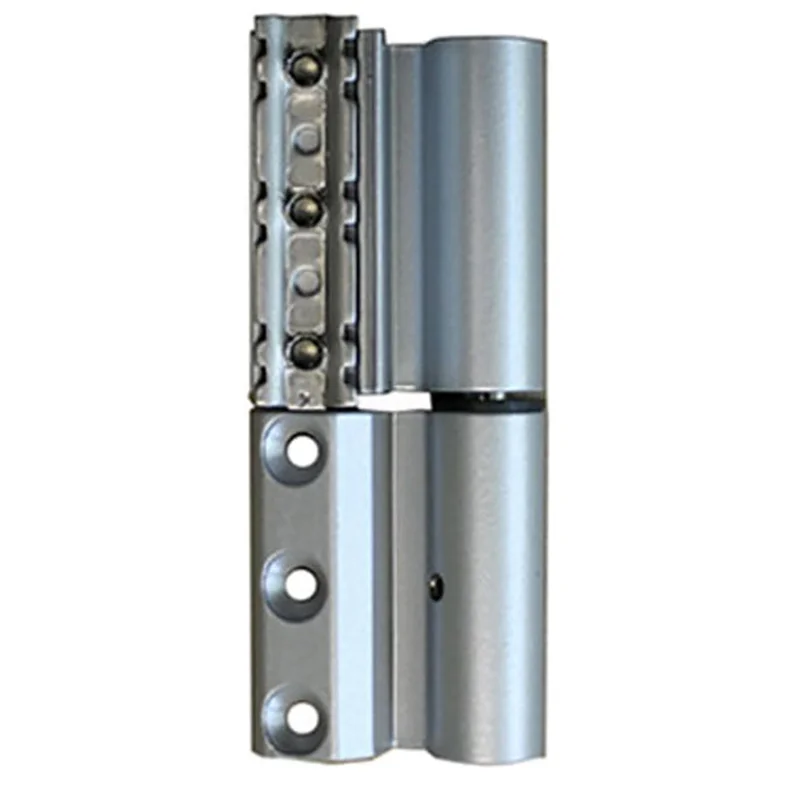

Giesse Flash Hinge XL – Clamp Hinge C001 for Euro Groove

Giesse two-handed hinge designed for aluminum windows and terrace/balcony doors with central gasket seal. This is a clamp-style hinge intended for Euro groove aluminum profiles. Marked 84344 on the plastic cap. Supplied preassembled for fast installation on already-assembled fixtures.

Specifications:

• Overall Height: 5-1/8 inch (130mm)
• Barrel Diameter: 7/8 inch
• Fixing Plate Width: 11/16 inch
• Fixing Plate Length: 2-3/4 inch (70mm)
• Material: Extruded aluminum, stainless steel fixing plates, pins and screws, polyamide bushing
• Color: Silver
• Markings: 84344 on plastic cap

Compatibility:

Aluminum framed terrace/balcony doors and windows with Euro groove profiles and central gasket seal.

Notes:

• Clamp widths and shapes of hinges vary (over a dozen profiles exist). Please verify all images and hinge measurements before purchasing.
• Supplied preassembled to enable fast installation and faultless positioning on already-assembled fixtures.
• The fixing plate fitted to the sash uses the Giesse RAPID system for secure attachment to the profile.
• The hinge geometry allows swift application to an already-assembled fixture with faultless screw positioning.
