Germania Lever Handle, Lara 68mm Backplate, Right-Hand, Satin Nickel

Description

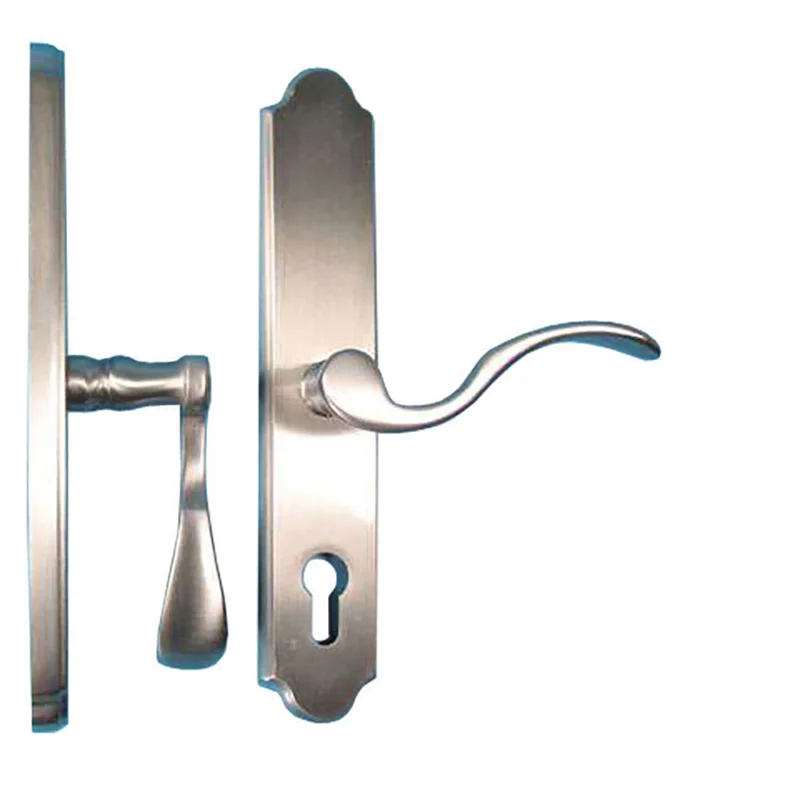

Germania Lever with Lara 68mm Backplate – Active Right-Hand Handle (Satin Nickel)

This replacement Germania lever handle set features a distinctive Lara arch top backplate in a satin nickel finish. Designed as an active handleset, it uses a key-operated Euro-profile cylinder on the exterior and a thumbturn on the interior.

Please note this is a
discontinued, non-standard size set with a unique 2.677″ (68mm) handle-to-cylinder spacing (PZ measurement), which is wider than standard. It’s ideal for users needing to match an existing door with this uncommon configuration.

This set
does not include the cylinder. The overall cylinder length required will depend on your door’s thickness, so please measure carefully. Compatible with 1-3/4″ (45mm) to 2-1/4″ (57mm) thick doors as standard; it may accommodate thicker doors with longer screws and spindle if required.

Technical Information

• Backplate Handle-to-Cylinder Spacing (PZ): 2-5/8″ (68mm)
• Handle Style: Germania, Curved
• Backplate Style: Lara, Arch Top
• Finish: Satin Nickel
• Spindle Diameter: 5/16″ (8mm)
• Door Thickness Compatibility: 1-3/4″ (45mm) to 2-1/4″ (57mm)
• Cylinder Type: Euro-profile, standard 360 degree rotation
• Keyway: Typically Schlage SC1 (to be determined for your setup)
• Installation Screw Thread: Metric M4
• Handed: Yes, set supplied as right hand but can be reversed as needed

Notes

• This product is discontinued and limited to existing inventory.
• Special size: verify the 68mm PZ spacing before ordering; standard handles are not compatible.
• The set screw is used to secure the lever to the shaft.
• May require longer screws, spindle, and cylinder for thicker doors. Check all measurements based on your specific door hardware setup.
• See additional product images for reference on sizing and installation.

Each order includes the lever handle set and backplate only; cylinder must be purchased separately.
Please carefully measure your existing hardware, PZ spacing, and door thickness to ensure the correct fit before ordering.
