FPL Atlantis Deadbolt – Single Cylinder

Original price was: $18.95.Current price is: $5.68.

SKU: 4696058101843 Category:

Description

PRODUCT DESCRIPTION

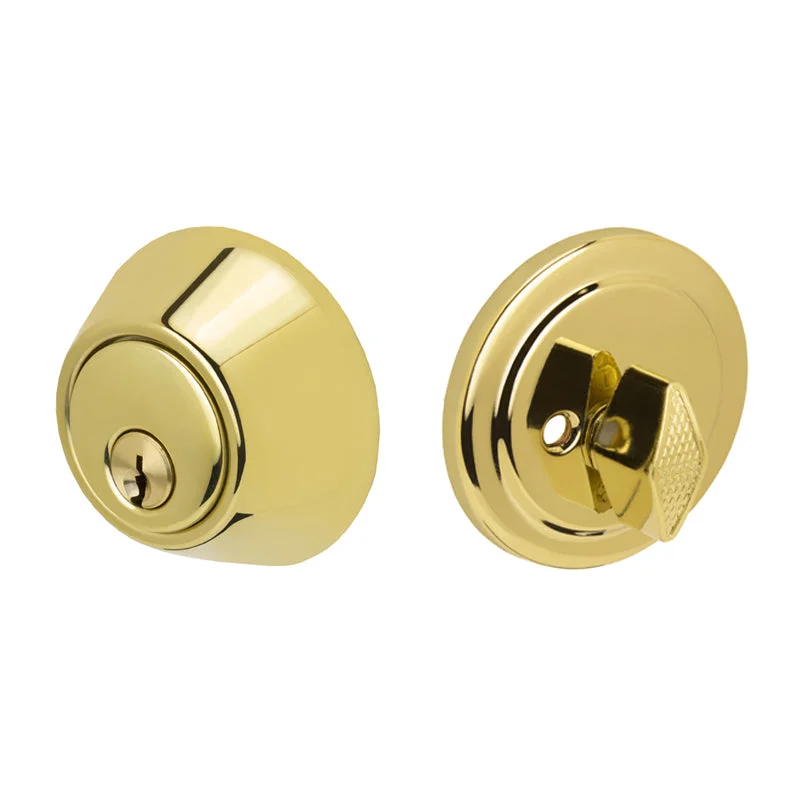

FPL Atlantis Single Cylinder Deadbolt

About this product:

FPL’s Atlantis single cylinder deadbolt is made of zinc and is available in two popular finishes. This deadbolt provides a clean, classic look and pairs well with the FPL Hampton Lever Set.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

Product Features:
  • Zinc construction for attractive design and pricing
  • Easy installation designed for standard 2-1/8″ cross bore door prep
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Lifetime Polished Brass (PVD), White (WPC)
  • California Residents Proposition 65 Warning

PRODUCT SPECS

FPL Atlantis Single Cylinder Deadbolt

About this product:

The Atlantis single cylinder deadbolt locks/unlocks with a key on the outside or the thumbturn on the inside.

Product Specs:
  • Atlantis Specification Sheet
  • Single Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8″
  • Edge bore: 1″
  • Adjustable backset: 2-3/8″ (60mm) or 2-3/4″ (70mm)
  • Door thickness: 1-3/8″ to 1-3/4″ (Screws included)
  • Exterior projection: 1″
  • Interior projection: 1″
  • Interior thickness: 3/8″
  • Latch: Mortised tubular latch
  • Latch faceplate and strike: Square and radius corner
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys

INSTALLATION

FPL Atlantis Single Cylinder Deadbolt

About this product:

The Atlantis single cylinder deadbolt is designed for easy installation using standard 2-1/8″ cross bore and 1″ edge bore door prep.

Product Installation:
  • Deadbolt Installation (Deadbolt style in this drawing is not a representation of actual deadbolt style purchased).
  • Standard Door Prep Diagram
