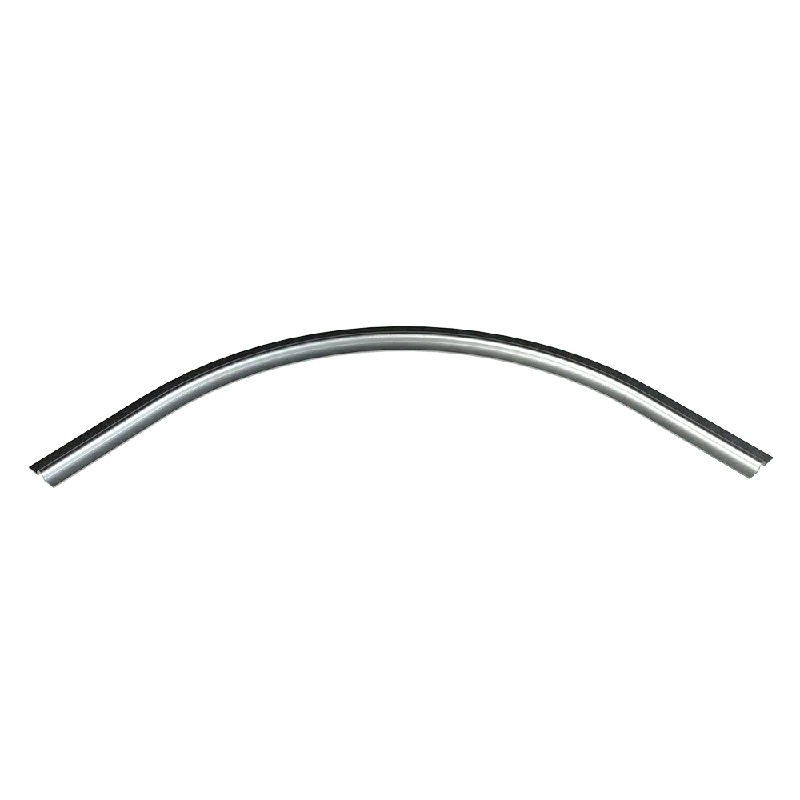

EXTRO System .5m Starting Curve

Description

.5m starting curve (CA4030.5) Min leaf 16 to max 29-1/2. For the EXTRO gate system, max weight capacity 1100lbs. This component is designed for gate systems with a maximum total panel weight of 1100 lbs. The weight limit applies to all gate panels combined and may vary depending on the number of panels used in each project. While the overall gate structure can be heavier, the supported load for this system should not exceed 1100 lbs across all panels.

All products needed for the EXTRO System:

CA4010, EXTRO system wheel

CA4020, EXTRO system hinge

CA4030.1 EXTRO system 1 m starting curve,(39-3/8) , Min leaf 30 to max 60 OR CA4030.5, EXTRO system .5m starting curve, (19-3/4), Min leaf 16 to max 29-1/2

CA4040, EXTRO system hinge template

The main leaf (gate panel) will need 2 wheels, 2 hinges
