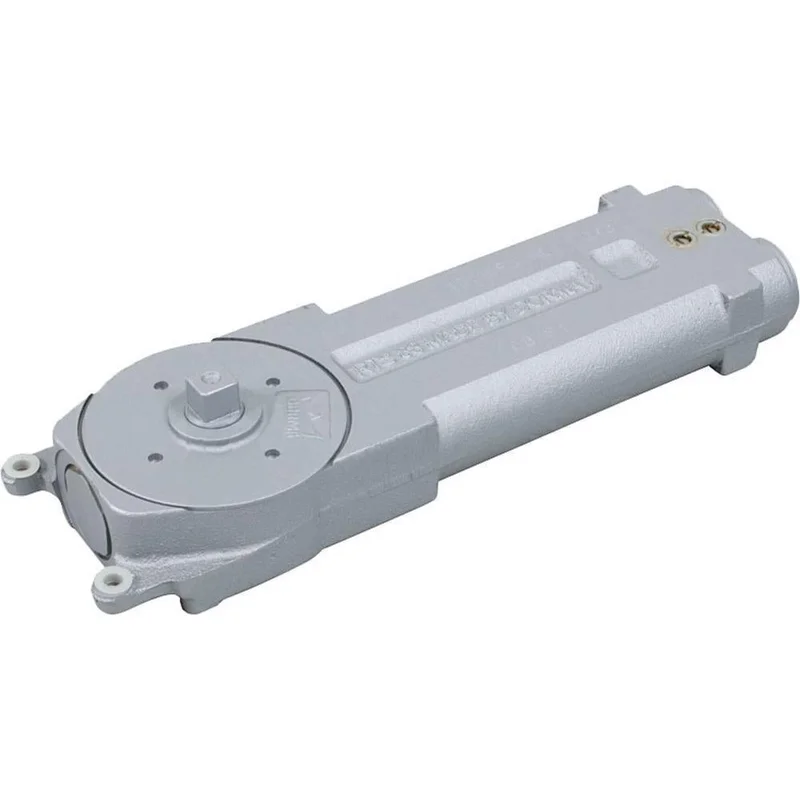

Dormakaba 105 Overhead Concealed Door Closer Hold Open Double Acting Closer for Commercial Doors

Description

The Dormakaba® 105° Overhead Concealed Door Closer with Hold Open is designed for commercial door applications, providing smooth and controlled door operation with the added convenience of a hold-open feature. Ideal for aluminum and hollow metal doors, this closer is engineered for double acting doors in high-traffic environments.

Sold by: Each
Brand: Dormakaba®
Closer Type: Overhead Concealed
Function: Hold Open (105° Opening)
Handing: Double Acting
Maximum Door Weight: 250 lbs
Recommended Door Size: 36″ to 48″ Wide x 96″ High
Recommended Door Type: Aluminum, Hollow Metal
Body Length: 12-1/2″
Body Width: 3-1/2″
Body Height: 1-1/2″
Spindle Size: 1/2″
Adjustments: Independent Closing and Latching Speed Valves
UL Listed: Yes
Includes: Mounting Clips, Templates, Instructions
Part Number: CH-273H-105

Constructed for durability and precision performance, this concealed closer body supports doors weighing up to 250 lbs and is recommended for doors 36″ to 48″ wide and up to 96″ high. The dual action design allows doors to swing in both directions, while the 105° opening range ensures controlled movement. The hold-open function allows the door to remain open at a set position, improving accessibility and traffic flow.

Equipped with dual action and non-critical control valves, this closer allows independent adjustment of closing and latching speeds for optimal performance. Each unit includes standard mounting clips, templates, and instructions for straightforward installation. Ideal for commercial storefront systems, it delivers reliable, long-lasting performance.
