Description

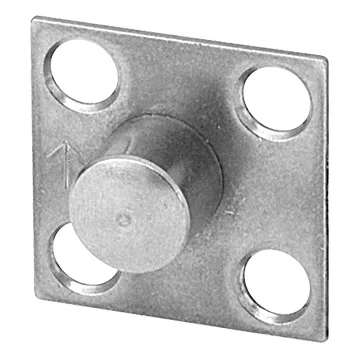

The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1″ x 1-1/16″ with 4 holes. The mounting holes are 11/16″ x 11/16″ on center. The diameter of the pin is 7/16″ and projects out 5/32″. Ships with mounting screws and 3 shim plates. The Dor-o-Matic Panic Devices have been around since the late 1960s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. Falcon part # PB48.
Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts Breakdown
