Description

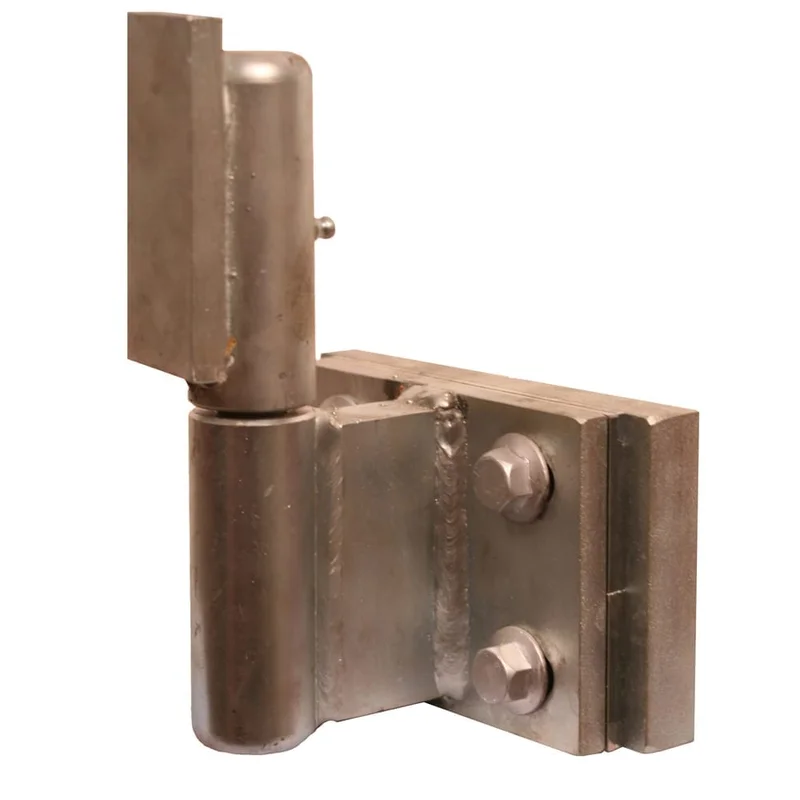

DJA Adjustable Barrel Hinge adjusts in three dimensions and brings ultimate flexibility to this heavy duty hinge. A metric Allen key is provided for adjustment.
Maximum capacity 3450 LBS at 6 8 H x 6 8 L gate. See full line of hinges.
Dimension and Product Details
Mounting plate: 6 x 3-7/8 x 25/32
Overall height: 8
Overall gap: 5
Stainless steel pin: 11/16 round
Ball bearing: 11/16 diameter
Barrel: 1-3/8 diameter with brass bushing
Finish: Zinc plated
Grease fitting
Refer to this handy table to check maximum weight capacity for the gate height and opening required for your application.
DJA Adjustable Barrel Hinge Specifications
| 4′ 2″ | 2150 | 1750 | 1450 | 1250 | 1100 | 900 |
| 5′ 0″ | 2550 | 2100 | 1750 | 1500 | 1300 | 1050 |
| 5′ 10″ | 3000 | 2450 | 1050 | 1750 | 1550 | 1250 |
| 6′ 8″ | 3450 | 2800 | 2350 | 2000 | 1750 | 1400 |
