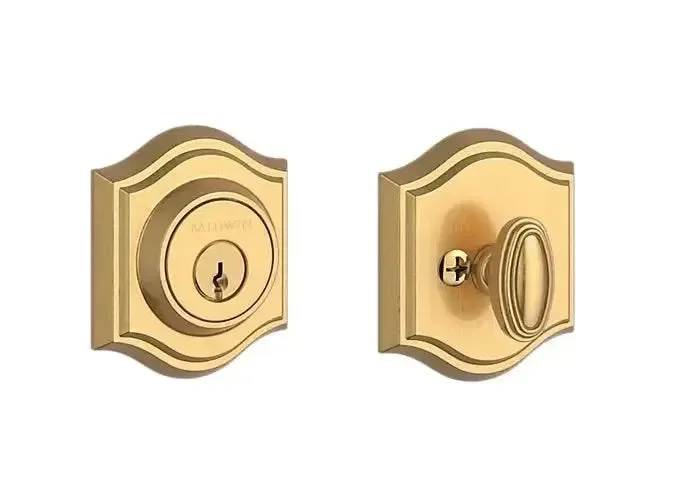

Baldwin Traditional Arch Deadbolt

Description

The Baldwin Traditional Arch Deadbolt proves that security can have style—and a little curve never hurts. With its graceful arched shape and timeless appeal, it’s the perfect blend of form and function for classic entryways. Strong, elegant, and never boring, it locks up your home with a touch of charm.

Features

• The combination of Reserve style and the security of a keyed cylinder, all within the 2 1/8″ standard door preparation.
• Locking mechanism functions with turn piece on the interior of the lock
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: Deadbolt features 1” throw Brass bolt latch
• Door Thickness: 1 3/4″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit. 1 3/8″ to 1 3/4″ doors available through Thin Door Service Part Kit.
• Complete deadbolt set includes everything needed to install the lock onto your door.
• Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
• 2 Keys Included with deadbolt
• Tested to exceed ANSI/BHMA Grade 2 security
• Note: Interior roses have exposed fasteners

Specifications

• Exterior Dimensions: 2 11/16″ x 3 1/16″
• Exterior Projection: 3/4″
• Interior Dimensions: 2 11/16″ x 3 1/16″
• Single Cylinder Interior Projection: 1 7/16″
• Double Cylinder Interior Projection: 3/4″
