Baldwin Soft Square Deadbolt

Description

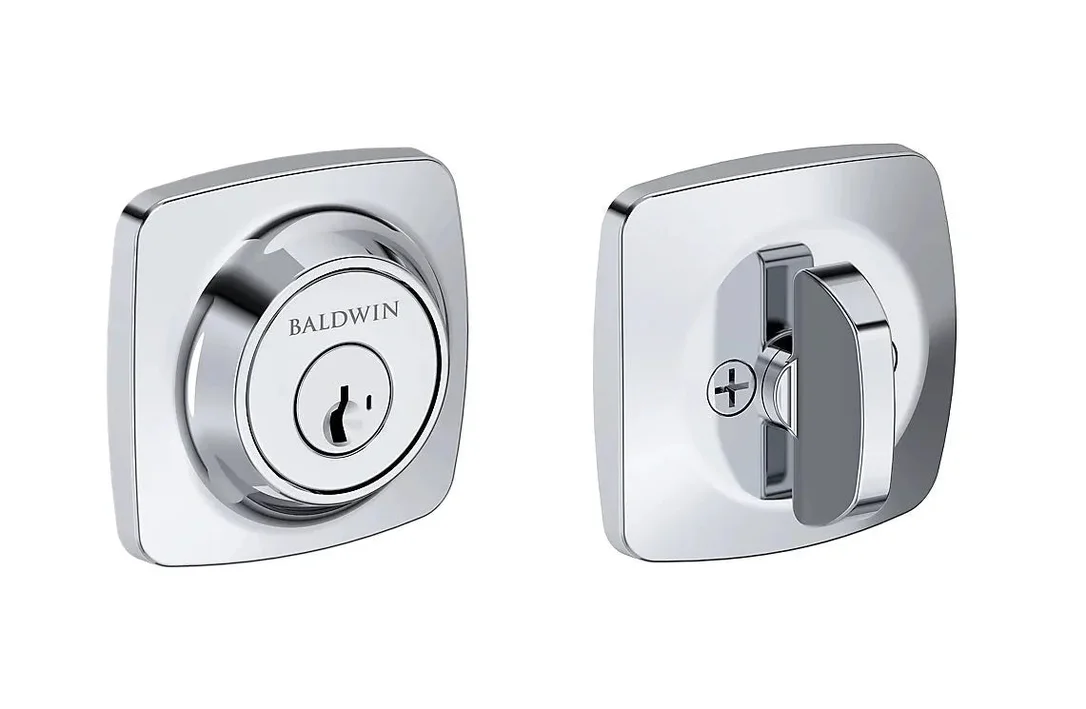

The Baldwin Soft Square Deadbolt is precision-forged from solid brass to deliver a substantial feel and superior durability. Its unique design features a square silhouette with rounded “soft” corners, making it versatile enough for both minimalist and traditional entryways. This deadbolt is engineered for maximum pick resistance and features a heavy-duty bolt to ensure your home’s protection. Available in various designer finishes, it offers a seamless, low-profile fit that complements modern lever sets perfectly. Experience the perfect balance of architectural elegance and professional-grade security in every turn.

Features

• The combination of Reserve style and the security of a keyed cylinder
• Single Cylinder locking mechanism functions with turn piece on the interior of the lock. Double Cylinder is keyed on both sides.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: Deadbolt features 1” throw Brass bolt latch
• Door Thickness: 1 3/4″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit. 1 3/8″ to 1 3/4″ doors available through Thin Door Service Part Kit.
• Complete deadbolt set includes everything needed to install the lock onto your door.
• Includes 6 Way Adjustable Front & Latch options: Round corner, Square corner and Drive in collar
• 2 Keys Included with deadbolt
• Tested to exceed ANSI/BHMA Grade 2 security
• Note: Interior roses have exposed fasteners

Specifications

• Exterior Dimensions: 2 9/16″ x 2 9/16″
• Exterior Projection: 3/4″
• Interior Dimensions: 2 9/16″ x 2 9/16″
• Single Cylinder Interior Projection: 1 5/16″
• Double Cylinder Interior Projection: 3/4″
