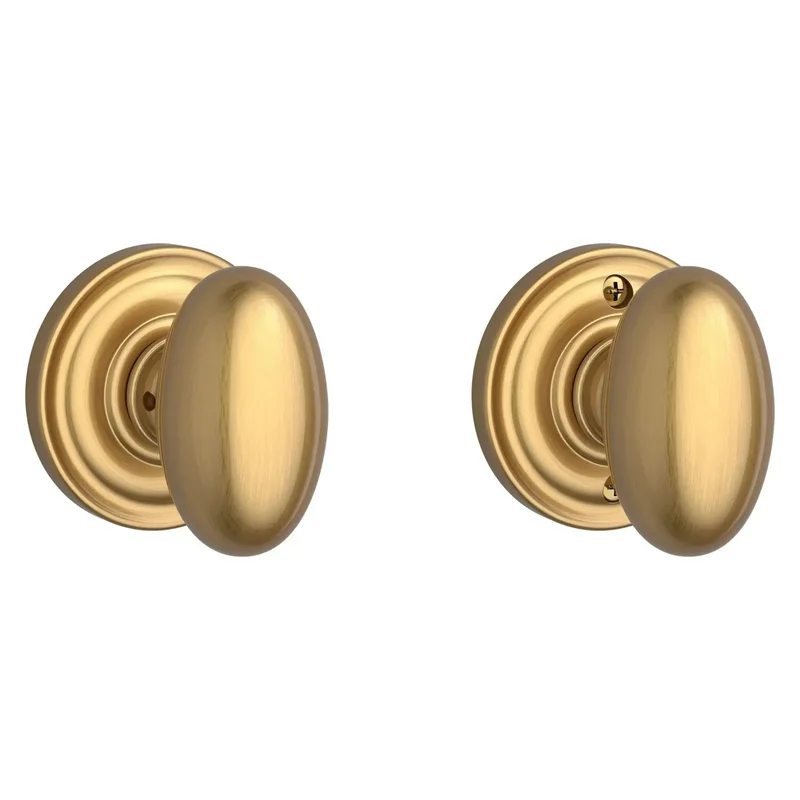

Baldwin Ellipse Knob with Traditional Round Rosette

Description

Infuse your home with unique elegance using the Baldwin Reserve Ellipse Knob. Its distinct ergonomic oval shape feels amazing in your hand, while the classic round rosette adds a touch of timeless tradition. Forged from solid brass, this knob is a perfect blend of modern style and enduring quality, making it a beautiful statement piece for any door.

Passage Features

• Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8″ standard door preparation.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Passage sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Privacy Features

• Knob set paired with roses with a privacy or locking feature to fit the 2 1/8″ standard door preparation.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Privacy sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Full Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Note: Interior roses have exposed fasteners
• Handing not required

Half Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
• Note: Half Dummy roses are surface mounted and have exposed fasteners

Keyed Entry Features

• Keyed entry function with turn-button locking. Can be unlocked by key outside or by turn-button inside.
• Provides the security of a keyed cylinder, all within the 2 1/8″ standard door preparation. Available with Baldwin 5-pin C-Keyway pin and tumbler cylinder only.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Specifications

• Projection: 2 11/32″
• Keyed Knob Projection: 2 3/16″
• Knob Height: 2 7/16″
• Rosette Diameter: 2 9/16″
