Baldwin Crystal Knob with Traditional Round Rosette

Description

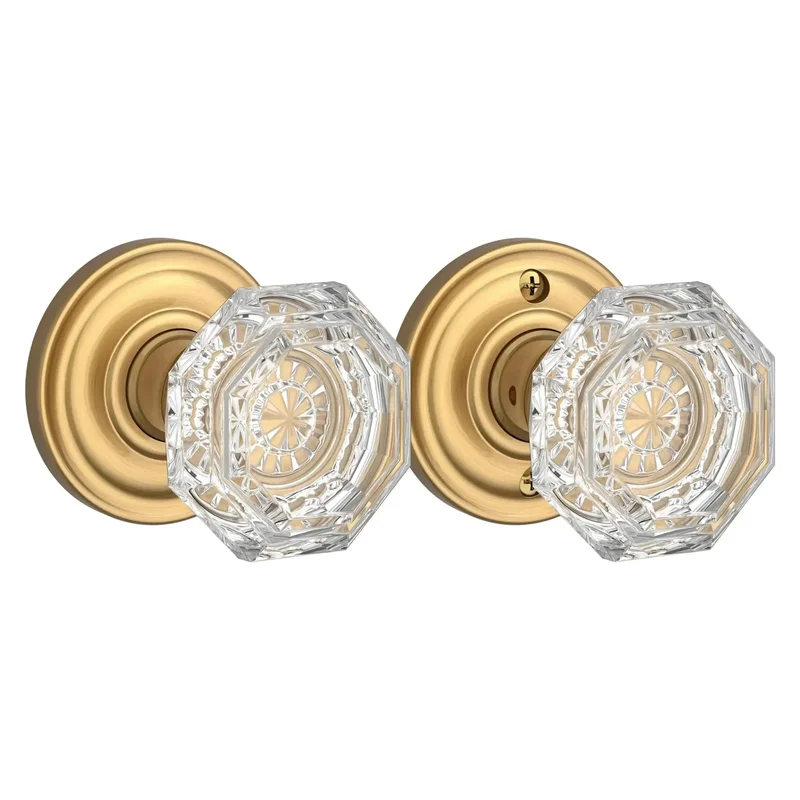

The Baldwin Reserve Crystal Knob with Traditional Round Rosette combines timeless beauty with a touch of vintage glamour. Its sparkling crystal knob and simple round base create a refined, elegant look that never goes out of style.

Passage Features

• Knob set paired with roses without a privacy lock to both close and secure any door with the 2 1/8″ standard door preparation.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Passage sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Privacy Features

• Knob set paired with roses with a privacy or locking feature to fit the 2 1/8″ standard door preparation.
• Includes a 2 3/8″ and 2 3/4″ adjustable backset latch and Dual Strike.
• Door Preparation: 2-1/8” Cross Bore. 1” edge bore for latch
• Latch Bolt: 1/2” passage/privacy/entry function bolt.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Privacy sets include everything needed to install the lock onto your door.
• Handing not required
• Knob/Lever rotates at 55°- 60°
• Note: Interior roses have exposed fasteners

Full Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Full Dummy sets include 2 levers, 2 roses, and mounting hardware.
• Door Thickness: 1 3/8″-2″ standard. Up to 2-1/2″ thick doors optional through Thick Door Service Part Kit
• Note: Interior roses have exposed fasteners
• Handing not required

Half Dummy Features

• Matches the look and feel of an active passage, privacy or entry door without the function of a lock or latch.
• Half Dummy sets include 1 knob, 1 rose, and mounting hardware.
• Note: Half Dummy roses are surface mounted and have exposed fasteners

Specifications

• Projection: 2 29/32″
• Knob Diameter: 2 3/16″
• Rosette Diameter: 2 9/16″
