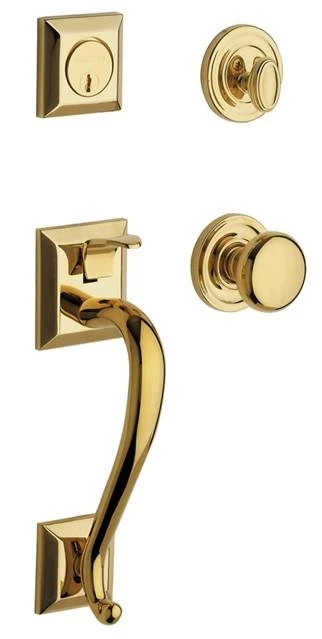

Baldwin 85320K Madison Sectional Handleset w/ Classic Knob

Description

Entrance handle, cylinder collar, knob, rose, and turn piece are manufactured of solid forged brass for maximum strength and durability.
Single Cylinder handlesets operated by thumbpiece outside and knob/lever inside. Deadbolt operated by key outside and turnpiece inside.
Double Cylinder handlesets operated by thumbpiece outside and knob/lever inside. Deadbolt operated by key outside and inside.
Dummy handlesets are a non-functiong handleset with interior trim. No locking mechanism.
Estate lock sets are designed for easy installation in standard pre-bored wood or metal doors. The adaptor aligns the latch with the trim.
Lock sets accommodate a door thickness of 1-3/4 in. Conversion kit is available for 2 in. to 2-1/4 in. door thickness at an additional charge.
Adjustable backset 2-3/8 in. or 2-3/4 in. latch and deadbolt supplied standard.
Deadbolt and latch supplied with a 1 in. face plate.
Deadbolt is furnished with a specially designed reinforcing strike constructed of high grade steel for ultimate strength and durability. The strike is installed with two 3 in. security jamb screws and a dust box. The security strike is covered with an armored front to conceal the fasteners.
Latches are supplied standard with a full lip strike.
Deadbolt has a 1 in. throw when extended and a hardened steel insert for maximum protection and security. Latch bolt throw has a 0.5 in. throw when extended to fully engage the door jamb.
Fully Reversible: Accommodates most door conditions and facilitates easy installation.
Lockset accommodates any Center-to-Center dimension greater than 4-3/8 in. (distance between Center of Latch and Deadbolt)
Cylinder supplied with 5-pin keying. Cylinder is protected with a free-turning cylinder guard to resist gripping or twisting.
Designed to fit 2-1/8 in. face bore with no additional hardware.
Exterior Deadbolt Trim: 2-1/2 in. x 2-1/2 in.
Exterior Deadbolt Projection: 17/32 in.
Overall Dimensions Exterior Handle: 2-3/4 in. x 9-31/32 in.
Exterior Handle Upper Trim: 2-3/4 in. x 3-1/16 in.
Exterior Handle Lower Trim: 2-3/8 in. x 2-3/8 in.
Exterior Handle Projection: 3-1/8 in.
Interior Turnpiece Trim: 2-1/2 in.
Interior Turnpiece Projection: 1-11/32 in.
Interior Knob: 2-3/32 in. diam.
Interior Rose: 2-5/8 in.
Interior Knob Projection: 2-5/16 in.
Each Estate lockset is sold as a complete set.
Specify finish when ordering.
