Description

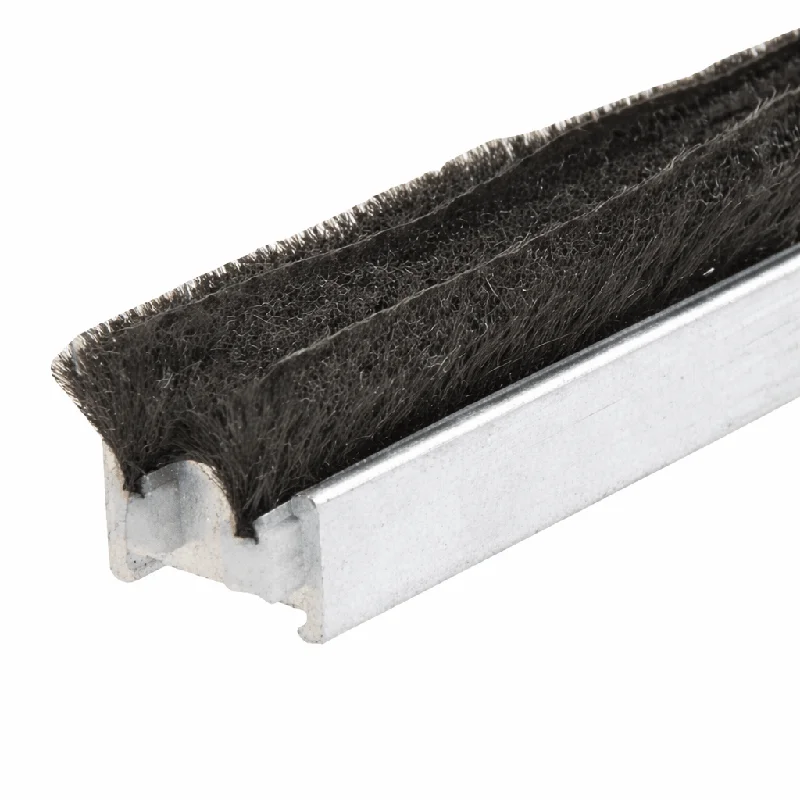

The 96″ Narrow Commercial Door Astragal with Weatherstrip is designed to improve sealing performance for commercial door applications. Engineered for high-traffic environments, this astragal helps reduce air infiltration while maintaining efficient and reliable door operation.
Sold by: Each
Finish/Color: Mill
Material: Extruded Aluminum
Length: 96″ (2438 mm)
Channel Width: 1/2″ (12.7 mm)
Height Range: 9/32″ to 1/2″ (7 mm to 12 mm)
Includes: 6 Spring Clips
Type: Narrow Commercial Astragal with Weatherstrip
Compatibility: Retrofit for Kawneer® Astragals
Application: Commercial Doors
Function: Improves Air Sealing and Door Performance
Part Number: WGR-326
Constructed from durable mill finish extruded aluminum, this astragal features a 1/2″ (12.7 mm) channel width and includes an integrated weatherstrip system for enhanced sealing. The design incorporates an impermeable film barrier to effectively block air leakage, while the adjustable spring tension system allows for quick and precise alignment to the mating door surface.
Designed for easy installation, this astragal installs with a standard screwdriver and includes six spring clips for secure mounting. It is compatible with and will retrofit Kawneer® astragals with a center channel width of 1/2″ or greater, making it a versatile solution for maintaining commercial door performance.
